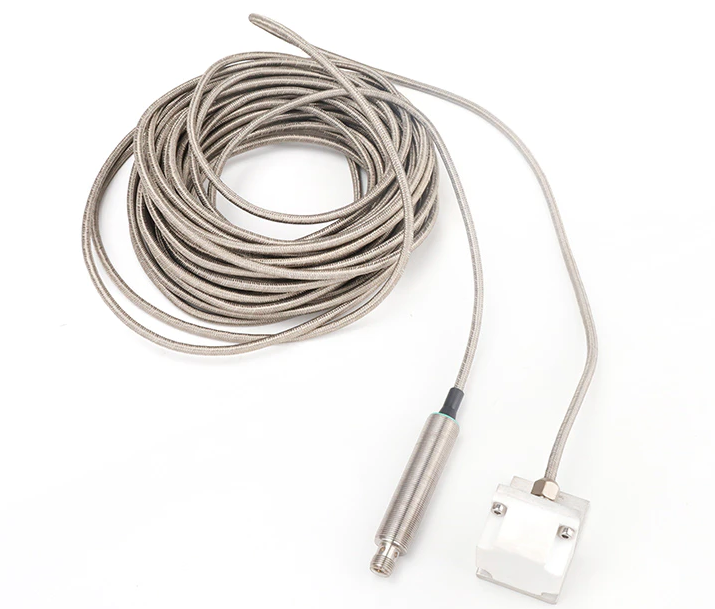

Pepperl Fuchs Inductive sensor NCN25-F35-A2-250-V 1Minimum bending radius of 30 cm for movable installation
Comfort series
Extended temperature range of sensor component
0 ... 250 °C (0 ... 482 °F)
10 m cable between sensor and amplifier with metal case
Suitable for drag chains and abrasion resistant
Minimum bending radius of 30 cm for movable installation
General specifications
Switching function complementary
Output type PNP
Rated operating distance 25 mm
Installation flush mountable
Output polarity DC
Assured operating distance 0 ... 20 mm
Reduction factor rAl 0.5
Reduction factor rCu 0.5
Reduction factor r304 0.6 ... 1
Output type 4-wire
Mounting angle Al
Amplifier housing Stainless steel
Nominal ratings
Operating voltage 10 ... 30 V
Switching frequency 0 ... 20 Hz
Hysteresis 0.3 ... 5 typ. 2 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 3 V
Operating current 0 ... 200 mA
No-load supply current ≤ 25 mA
Time delay before availability ≤ 20 ms
Switching state indicator Multihole-LED, yellow
Functional safety related parameters
MTTFd 7515 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Approvals and certificates
UL approval cULus Listed, General Purpose, Class 2 Power Source
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature 0 ... 250 °C (32 ... 482 °F)
Mechanical specifications
Connection type Connector plug M12 x 1 , 4-pin
Cable version PFA cable, with armour of stainless steel
Core cross section 3 x 0.34 , screened
Housing material PTFE / Al / 1.4305 / AISI 303
Sensing face PTFE
Degree of protection amplifier IP67
sensor IP40
Dimensions
Height 40 mm
Width 44 mm
Length 56 mm
Cable length L = 10 m
Note - amplifier 0 °C ... 70 °C
- r1.4305 dep. on thickness of measurement plate d:
r1.4305 = 1 for d < 1mm
Additional accessory: Protective cover SH-F35 is available for use in areas where there is moisture and as a means of mechanical protection.
|
|
