BSPP Rosemount PH Sensors 211001L1NAQ4 2110 Level Switch Vibrating Fork

Rosemount 211001L1NAQ4 2110 Level Switch Vibrating Fork

The Rosemount 2110 is designed using the principle of a tuning fork.A piezo-electric crystal oscillates the forks at their natural frequency.

Changes to this frequency are continuously monitored. The frequencyof the vibrating fork sensor changes depending on the medium in

which it is immersed. The denser the liquid, the lower the frequency.

When used as a low level alarm, the liquid in the tank or pipe drainsdown past the fork, causing a change of natural frequency that is

detected by the electronics and switches the output state.

When the Rosemount 2110 is used as a high level alarm, the liquidrises in the tank or pipe, making contact with the fork which then

causes the output state to switch.

Specifications

• Virtually unaffected by turbulence, foam,

  vibration, coating, or changing liquid properties

• Built in diagnostics continuously monitors

  instrument health and Heartbeat LED provides

  visual indication

• Magnetic test point makes testing of the

  Rosemount 2110 and system easy

• Minimal installation and maintenance, and no

  calibration required, keeps costs down

• DIBt / WHG overfill protection certification keeps

  peace of mind

• Compact size makes the Rosemount 2110

  suitable for use in small vessels and tanks or for

  in-pipe mounting

• Hygienically certified to 3-A® and EHEDG, and

  complies with FDA and ASME-BPE

•

BSPP Rosemount PH Sensors

Rosemount PH Sensors 211001L1NAQ4

2110 Level Switch Vibrating Fork

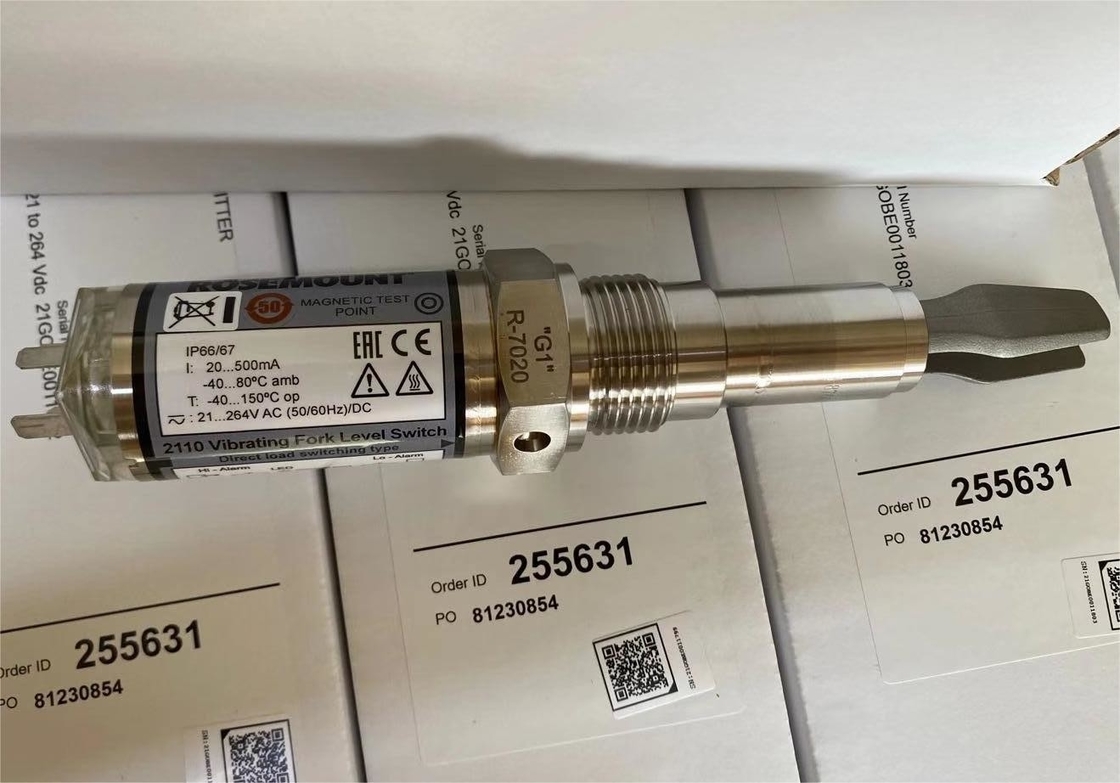

BSPP Rosemount PH Sensors 211001L1NAQ4 2110 Level Switch Vibrating Fork Images
