1.5kg 12.7Vdc Rosemount 1066-CL-HT-73 Single Channel Rosemount 1066 Transmitter

Rosemount1066-CL-HT-73 1066 Single Channel Transmitter

The Rosemount 1066 Single Channel Transmitter supports continuous measurement of one liquid analytical input - pH sensor, conductivity sensor, chlorine sensor, dissolved oxygen sensor or ozone sensor. The design supports easy internal access and wiring connections. The large display gives excellent visibility for live measurements and displayed parameters. Conveniently, live process values are always displayed during programming and calibration routines.

Specifications

• Power SupplySupply voltage at the transmitter terminals should be at least 12.7Vdc. Power supply voltage should cover the voltage drop on the cable plus the external load resistor required for HART® communications (250 Ω)

• WeightR2 lbs/3 lbs (1 kg/1.5 kg)

• Communication ProtocolHART™ Communications & diagnostics: PV, SV, TV, and 4V assignable, temperature

• DiagnosticsPV, SV, TV, and 4V assignable

• InputOne sensor input

• Measurement TypeMeasures pH levels, conductivity levels, chlorine concentration, dissolved oxygen concentration and ozone concentration with compatible sensors.

1.5kg rosemount 1066

12.7Vdc rosemount 1066 transmitter

Single Channel Transmitter

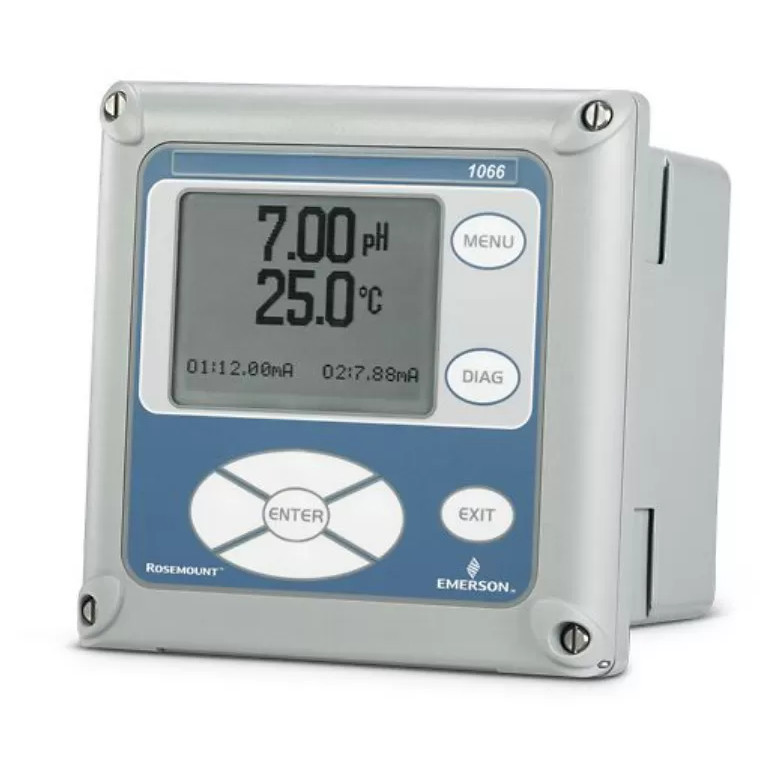

1.5kg 12.7Vdc Rosemount 1066-CL-HT-73 Single Channel Rosemount 1066 Transmitter Images
